If you’ve ever compared two Polaris RZR 800 front differentials and thought, “These are both supposed to fit my machine, so why does the input side look different?” You’re not imagining it.

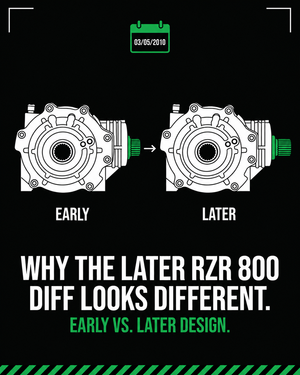

Polaris made a running change to the RZR 800 front differential during the 2010 model year, and that change is one of the reasons older and later replacement units can look slightly different even when they cross-reference to the same application.

Here’s what actually changed, and what you need to know before installing one.

The Important Date: March 5, 2010

Polaris OEM parts catalogs divide the 2010 RZR 800 front gearcase into two production groups:

• Built March 4, 2010 and earlier

• Built March 5, 2010 and later

This wasn't just a new number slapped on the same differential. Polaris changed several internal components at the same time.

The earlier configuration used:

• 3235058 — Ring & Pinion Assembly

• 2203736 — Input Cover

The later configuration used:

• 3235199 — Revised Ring & Pinion Assembly

• 3235200 — Revised Input Cover

Polaris also changed several components on the output side of the differential, including the output cover, output hub, and roll cage.

In other words: this was a real gearcase revision, not just a superseded sticker or catalog number.

So Is the Later Pinion Longer?

This is where things get confusing.

You'll sometimes hear that the later RZR differential has a “longer pinion” or even that the pinion is exactly 1/4 inch longer.

We wouldn't state that as fact.

Polaris changed the complete input-side configuration, and the OEM ring-and-pinion service assemblies include more than just the bare pinion shaft. They include components such as the pinion, bearings, spacer, and related input components — and the input cover itself changed at the same production break.

That means a difference in how far the input assembly sticks out does not automatically mean the bare pinion shaft grew by the same amount.

The difference could come from:

• The pinion itself

• Bearing position or dimensions

• Spacer thickness

• Input-cover geometry

• Clutch/input housing geometry

• Or a combination of those changes

Without a Polaris engineering drawing or verified side-by-side measurement of the bare 3235058 and 3235199 pinions, saying “the pinion is exactly 1/4 inch longer” is more precise than the available information supports.

What we can say confidently is this:

The later differential uses revised input-side geometry.

What About OEM Part Number 1332803?

This is another place where the catalog can throw you off.

The earlier 2010 configuration was originally associated with complete front gearcase 1332831, while the later configuration used 1332803.

Today, Polaris parts catalogs may show 1332803 as the replacement or supersession for the earlier 1332831 assembly. You'll also see 1332803 cross-reference older RZR differential numbers in some applications.

That's why searching only the number stamped on your original differential doesn't always tell the entire story.

This is the same reason we constantly tell customers:

OEM supersessions matter.

The number on the old part can be correct while the current replacement carries a different number — or a later design can become the service replacement for several earlier assemblies.

Can the Later Differential Replace the Earlier One?

As a complete differential assembly, yes — Polaris service-parts information supersedes earlier gearcases to the later replacement configuration.

But that does not mean you should mix early and late internal parts at random.

The early 3235058 ring-and-pinion assembly was paired with the early 2203736 input cover.

The later 3235199 ring-and-pinion assembly was paired with the later 3235200 input cover.

If you're rebuilding one internally rather than replacing the complete differential, make sure you're working with the correct matched configuration.

This is especially important with ring-and-pinion components. They're not something you want to mix based on appearance alone.

The Steering-Rack Clearance You Need to Know About

Here's the part that matters most during installation.

On certain RZR 800 applications, installing a later-style replacement differential can create clearance interference near the lower steering-rack mounting bracket.

For our applicable replacement differential, the installation note calls for a small notch in the steering-rack bracket, approximately 1/4 inch in the area between the lower steering-rack mounting bolts.

Here's the important distinction:

That does NOT mean the pinion shaft is 1/4 inch longer.

The 1/4-inch figure refers to the clearance/notch area described in the installation instructions, not a verified measurement of the difference between the early and late Polaris pinion shafts.

Those are two completely different measurements.

Don't Remove More Material Than Necessary

If your application requires the clearance modification, you're making room for the replacement differential — not redesigning the steering-rack mount.

Only remove the minimum amount of material required for proper clearance.

Do not modify:

• The steering-rack mounting bolt holes

• The bolt seating surfaces

• The rack mounting position

• More bracket material than necessary

After installation, verify that the differential and steering-rack bracket are not contacting each other and that the steering rack remains securely mounted.

If you're unsure whether your machine requires the clearance modification, check before cutting anything.

Why Did Polaris Change the Design?

This is another area where it's easy to turn an assumption into a fact.

We know Polaris revised the ring and pinion, input cover, output components, and other internal parts during 2010 production.

What we haven't found is a Polaris technical bulletin stating:

“We made this change because the old pinion bearing failed,”

or:

“This revision was specifically designed to increase strength.”

There are several possible engineering reasons for a redesign like this — bearing support, durability, sealing, manufacturing changes, parts standardization, or other drivetrain considerations — but without factory documentation, we don't want to pretend we know which one drove the change.

So we describe it for what the OEM documentation actually supports:

A later/revised Polaris front differential design.

The Takeaway

If you're replacing the front differential in an older Polaris RZR 800, don't assume two different-looking input ends mean you've received the wrong part.

Polaris changed the front gearcase configuration during the 2010 production year, and later complete differential assemblies became service replacements for earlier configurations.

Just remember:

• Early and later internal configurations are different.

• Don't mix ring-and-pinion/input components without confirming compatibility.

• The later-style replacement may have different input-end geometry.

• Some RZR 800 installations may require a small steering-rack bracket clearance notch.

• The commonly referenced 1/4-inch clearance should not be confused with a verified 1/4-inch increase in pinion-shaft length.

When in doubt, send us your year, make, model, and OEM differential number before ordering.

We'll cross-reference it to the correct replacement and let you know about any installation notes before you start tearing the machine apart.
